LCH1165.68-I

LCH1165.68-I-3P

LCH1165.68-I-3PA

LCH1165.68-I-5P

Technical information

250V/450V,PTI 250,T85

IP68 at 5 bar

Avaliable connector inside : 3P, 3PA, 5P

Overview

1. Cosmetic inspect、Environment description

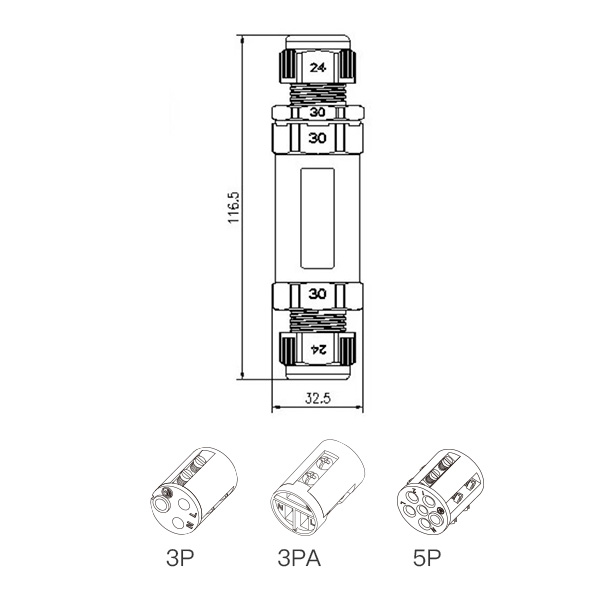

1.1 External dimensions for reference on the drawing

1.2 Normal ambient condition

     Operating temperature: -30℃~85℃

     Storage Temperature: -30℃~85℃

     Barometric pressure: 86~106KPa

     Grade of Waterproofing: IP68

2. Product structure to describe

2.1 Method of connecting wire: Crimping by screw

2.2 Cable diameter:

　   Ø5mm ~ Ø8mm

　   Ø8mm ~ Ø14mm

2.3 Metal parts: Cu

2.4 Plastic housing: PA66, V-0, 960℃,PTI:250

2.5 Rubber gasket: Silicone

2.6 Maximum Current: 24A

3. Test standard

IEC60998-2-1:2004

IEC62444:2013

IEC60529:1991+A1:2000+A2:2013
