T-junction Circular Joint-Connector





LCH1165.68-T
LCH1165.68-T-3P
LCH1165.68-T-3PA
LCH1165.68-T-5P
Technical information
250V/450V,PTI 250,T85
IP68 at 5 bar
Avaliable connector inside : 3P, 3PA, 5P
OVERVIEW
1. Cosmetic inspect、Environment description

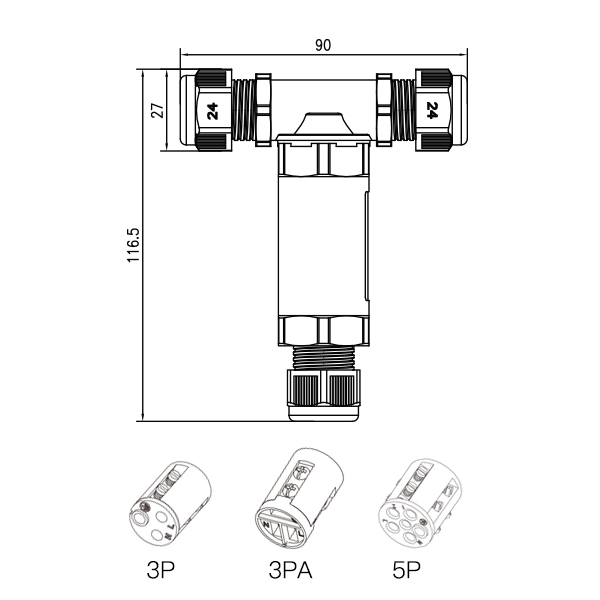

1.1 External dimensions for reference on the drawing
1.2 Normal ambient condition
Operating temperature:-30℃~85℃
Storage Temperature:-30℃~85℃
Barometric pressure:86~106KPa
Grade of Waterproofing:IP68
2. Product structure to describe
2.1 Method of connecting wire:Crimping by screw
2.2 Cable diameter:Ø5mm ~ Ø8mm ;Ø8mm ~ Ø14mm
2.3 Metal parts:Cu
2.4 Plastic housing:PA66, V-0, 960℃,PTI:250
2.5 Rubber gasket: Silicone
2.6 Maximum Current: 24A
3. Test standard
IEC60998-2-1:2004
IEC62444:2013
IEC60529:1991+A1:2000+A2:2013
