1. Cosmetic inspect、Environment description

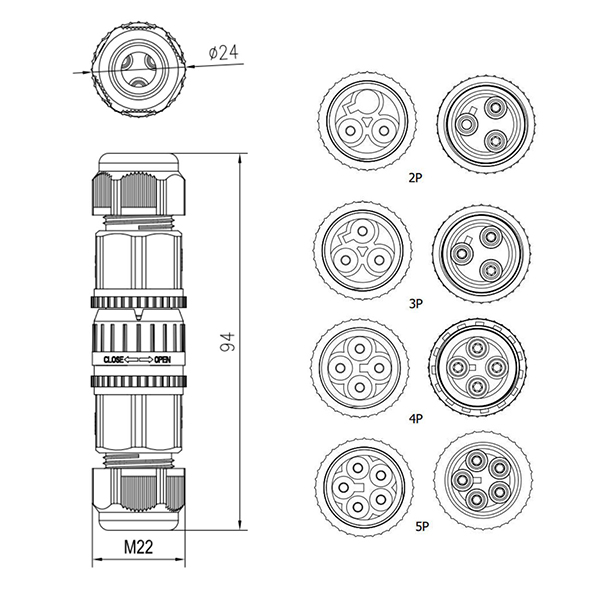

1.1 External dimensions for reference on the drawing

1.2 Normal ambient condition

     Operating temperature：-30℃~85℃

     Storage Temperature：-30℃~85℃

     Barometric pressure：86~106KPa

     Grade of Waterproofing：IP68

2. Product structure to describe

2.1 Method of connecting wire：Crimping by screw

2.2 Cable diameter：Ø5mm ~ Ø8mm ；Ø8mm ~ Ø12mm

2.3 Metal parts：Cu

2.4 Plastic housing：PA66, V-0, 960℃,PTI:250

2.5 Rubber gasket: Silicone

2.6 Maximum Current: 16A (for 2P/ 3P/ 4P);10A (for 5P)

3. Test standard

IEC60998-2-1:2004

IEC62444:2013

IEC60529:1991+A1:2000+A2:2013
