1. Cosmetic inspect、Environment description

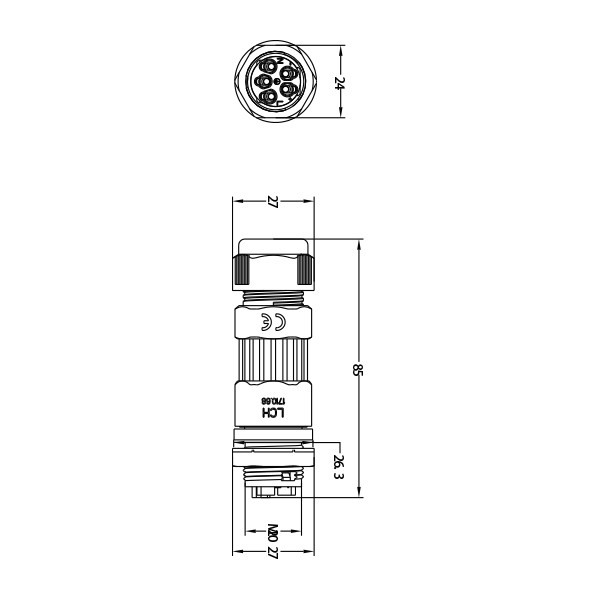

1.1 External dimensions for reference on the drawing

1.2 Normal ambient condition

     Operating temperature:-30℃~85℃

     Storage Temperature:-30℃~105℃

     Barometric pressure:86~106KPa

     Grade of Waterproofing:IP68

2. Product structure to describe

2.1 Method of connecting wire: Fast connect fixation

2.2 Cable diameter:

　   Ø5mm ~ Ø8mm ；Ø7mm ~ Ø9mm

　   Ø9mm ~ Ø12.8mm （selectable）

2.3 Metal parts:Cu

2.4 Plastic housing:PA66, V-0, 960℃,PTI:250

2.5 Rubber gasket: Silicone

2.6 Maximum Current: 16A

3. Test standard

IEC61984:2009

IEC62444:2013

IEC60529:1991+A1:2000+A2:2013
